Finding the Shortest Path over Terrain from a Grid Layer

You can use Maptitude to find shortest paths over terrain from a grid layer. To find a shortest path over terrain, you use the Terrain Shortest Path toolbar to define an origin and destination and to choose how accurately to compute the shortest path and how much to penalize changes in elevation.

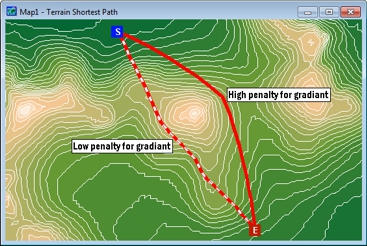

The map below shows two different paths between a pair of points. The dashed route has a low penalty for gradient and is steeper and straighter than the solid route which has a high penalty for gradient.

Terrain shortest path comparison

Blue triangle iconTo Find a Shortest Path over Terrain from a Grid Layer

  1. Open a grid geographic file, or choose a grid layer in the current map.
  2. Choose Tools>3D>Terrain Shortest Path to open the Terrain Shortest Path toolbar.
Terrain Shortest Path toolbar
  1. Click Define Origin Point button to activate the Define Origin Point tool.
  2. Click on the map where the path should start. Maptitude places a marker where you clicked.
  3. Click Define Destination Point button to activate the Define Destination Point tool.
  4. Click on the map where the path should end. Maptitude places a marker where you clicked.
  5. Choose a level of accuracy:
Option What it does
Low Maptitude uses less processing time and the route is less detailed
Normal Maptitude balances the processing time and the detail of the route
High Maptitude uses more processing time and the route is more detailed
  1. Choose the penalty to apply to gradient:
Option What it does
Low Maptitude weighs distance more than changes in elevation when finding the shortest path. Paths will be shorter and hillier.
Normal Maptitude weighs distance and changes in elevation equally when finding the shortest path.
High Maptitude weighs changes in elevation more than distance when finding the shortest path. Paths will be longer and flatter.
  1. Click Find Path button.

Maptitude calculates the shortest path over the terrain and displays the path on the map as a freehand line. You can return to step 3 to change the settings and calculate another shortest path.
