Transportation Data Layers

The Transportation Data product includes numerous nationwide and North American transportation geographic layers.

Available File Formats:

Available in Caliper CDF format for use with Maptitude and TransCAD. To learn about data availability in other GIS file formats, please contact a Caliper data expert today by emailing sales@caliper.com or by calling us at +1 617-527-4700.

Price: $195 Single User License*

To order or learn more, please contact a Caliper data expert today by emailing sales@caliper.com or by calling us at +1 617-527-4700.

Geographic Layers Included:

• Air Network (1992)
• Airport Runways (1999)
• AM Radio Stations (1999)
• Amtrak Stations (2003)
• BEA Regions (1977 & 1995 & 2004)
• Canadian Counties (Incomplete)
• Census tracts w/ Caliper Transportation Profile
• Central Business Districts (1990)
• Component Econ. Analysis Regions (1995)
• Component Econ. Analysis Regions (2004)
• Conterminous United States Coastline Dams (1998)
• Federal Aid Urbanized Areas (1995)
• FM Radio Stations (1999)
• Freight Analysis Framework Network
• Indian Reservations
• Migration PUMS 1% Sample Areas (2000)
• Migration PUMS 5% Sample Areas (2000)
• Military Installations (2003)
• MPO Planning Areas
• National Parks
• National Transportation Analysis Regions (1993)
• North American Airports
• North American Highways
• North American Intermodal
• North American Railroads
• North American States
• North American Water Ports
• Place of Work PUMS 1% Sample Areas (2000)
• Place of Work PUMS 5% Sample Areas (2000)
• Public Use Microdata Sample Areas (1990)
• Railroads 1:100,000 (1998)
• Railroads 1:2,000,000 (1998)
• Rail Border Crossings
• Road Border Crossings
• 30-second Digital Elevation Model
• Transit and Ferry Network, including light rail, heavy rail, monorail, HOV, cable car, and more
• Transportation Analysis Zones (1990 & 2000)
• TV Stations (1999)
• Urbanized Areas (1990)
• Urbanized Areas and Urban Clusters (2000)
• Waterway Network v2.2

*For use with a single copy of Caliper's Maptitude Mapping Software or TransCAD Transportation Planning Software

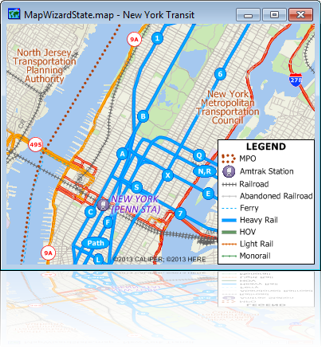

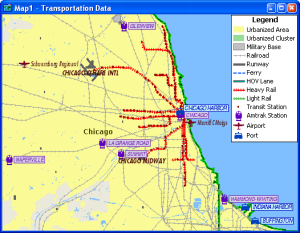

Sample map of transportation data layers
